BattLife

next generation battery asset maintenance software

Download Link

Designed for:

Lead acid, Ni-Cad, Lithium-Ion battery systems

Deliver Maintenance:

Standby Battery Systems, Battery Chargers, UPS Systems, Generators, Battery Storage Systems

BattLife Hardware:

AC & DC load bank dataloggers

BattLife Software:

Runs on laptop or PC with Windows 10 operating system

BattLife - Commissioning

Track the life time battery Asset performance, by storing the discharge or autonomy commissioning data and reports in BattLife.

BattLife - Maintenance & Warranty
Plan battery maintenance work flows, to protect asset investments and warranty compliance with BattLife software.

BattLife - End of Life

Create robust preventative maintenance for end of life budget planning and avoid premature battery failures by using the BattLife software.

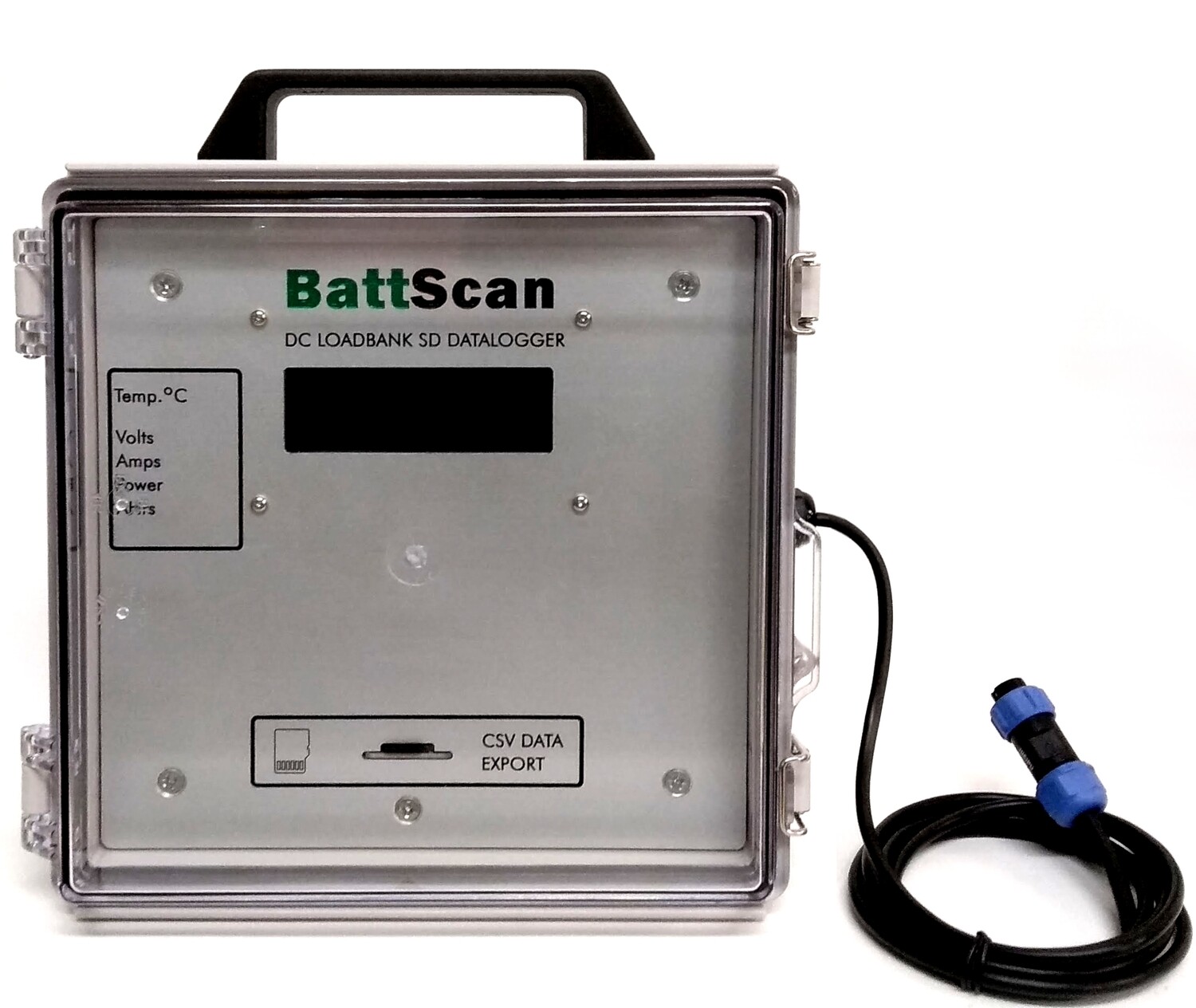

BattScan Datalogger
Batt-Life-Data-Logger
DC Load Bank SD Card Datalogger
Show Details

**Record Discharge Data**

Compatible with Hillstone DC load banks.

  • Upload live discharge data and record onto an SD card in CSV file format

  • Record battery Volts, current, temperature, A/hrs and elapsed time

  • Import the CSV file into BattLife for reporting and historical End of Life analysis

  • No external power is required when connected to the load bank

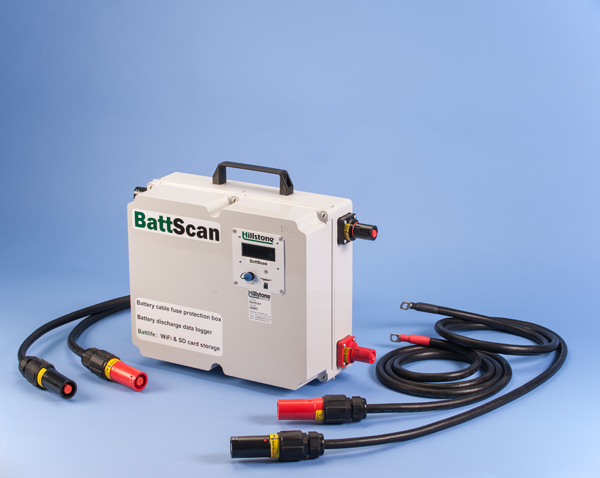

BattScan Fuse Box Datalogger
Batt-Life-Fuse-Box-HP-BFB-540V-224A-DL
Discharge Fuse Box SD Card Datalogger
Show Details

*** Safety First ***

Fuse protect the battery during discharge testing.

  • Compatible with any battery testing load bank

  • Using BattScan technology to record the discharge test onto an SD card in CV file format

  • Import the CSV file into BattLife for reporting and historical End of Life analysis

  • Panel mounted sockets for insulated connection to the battery cable

  • In-line cable with insulated connectors for the load bank

  • Internal NH fuse protection in both positive & negative cables

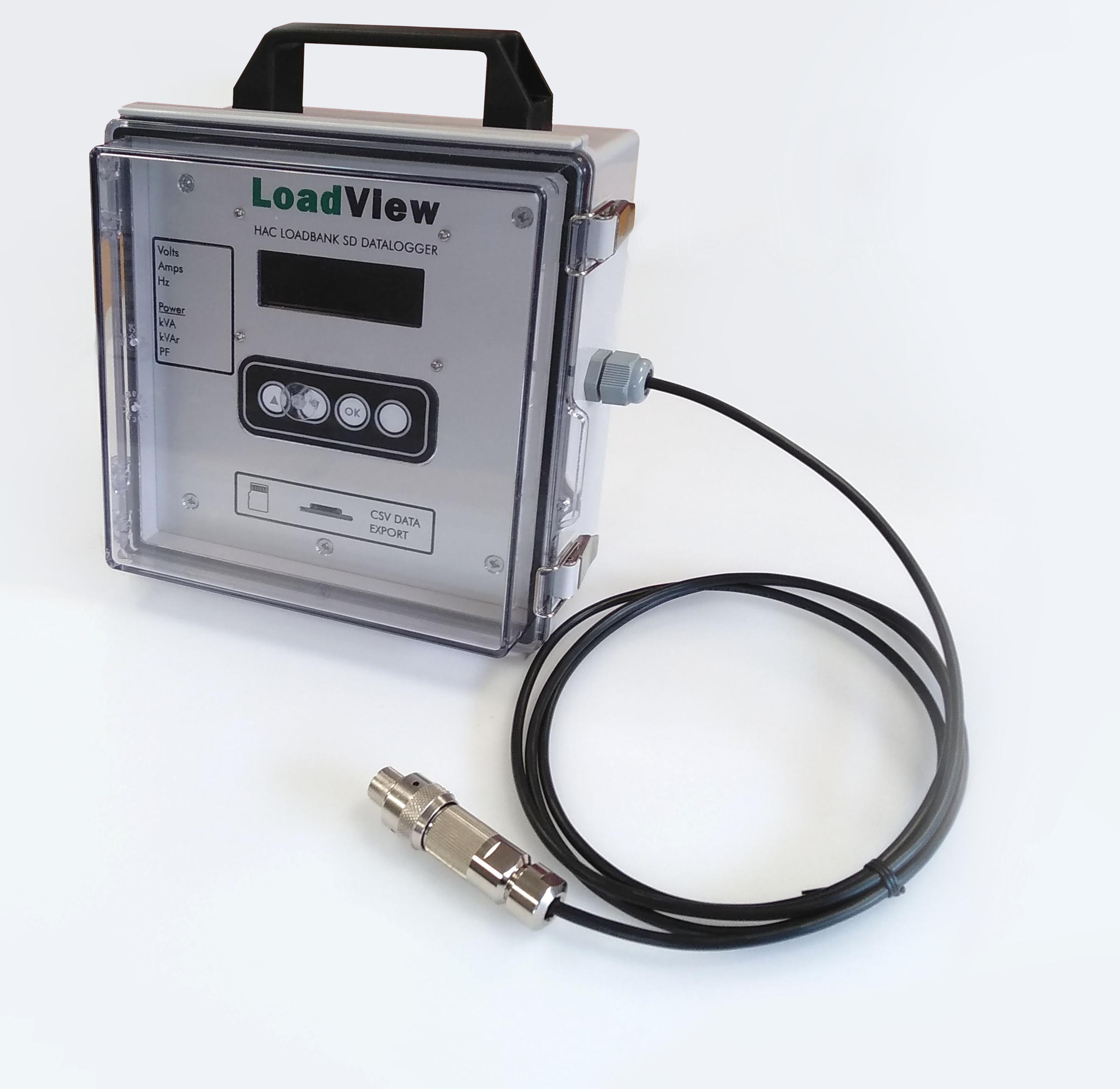

AC LoadView Datalogger
Datalogger
AC Load Bank SD Card Datalogger
Show Details

**Record Load Profile Data**

Compatible with Hillstone AC load banks.

  • Datalog the AC results during a UPS or genset load bank test

  • Record single & 3 phase Volts, current, kVA, kVAr and power factor, onto an SD card for exporting as a CSV file

  • Import the CSV file into free to use LoadView software for reporting

  • Export from LoadView into BattLife for UPS autonomy load test reporting and analysis

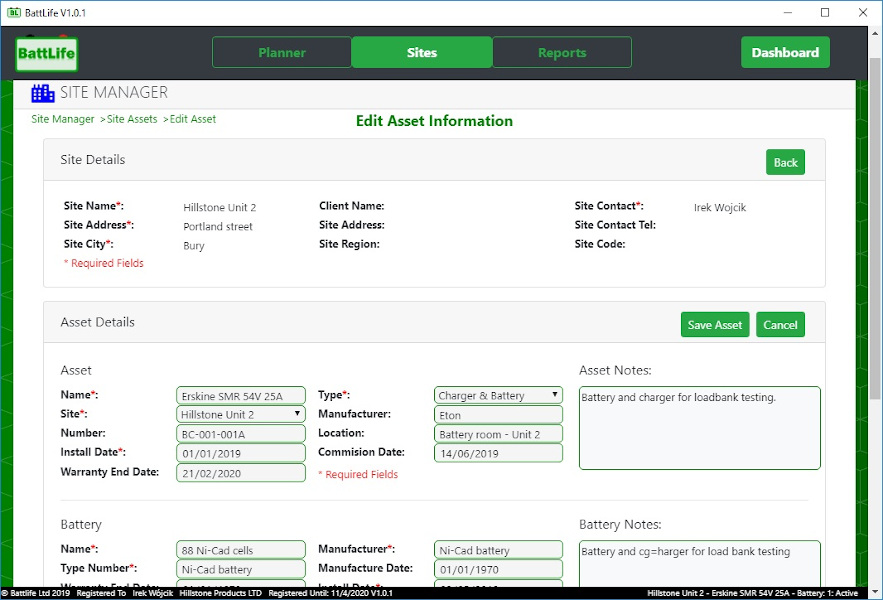

BattLife - Site Manager
site icon
Site Manager Details

Manage Site Assets such as:

  • UPS System Batteries

  • Batteries & Chargers

  • Genset Starter Batteries

  • Emergency Lighting Batteries

  • Switch Tripper Batteries

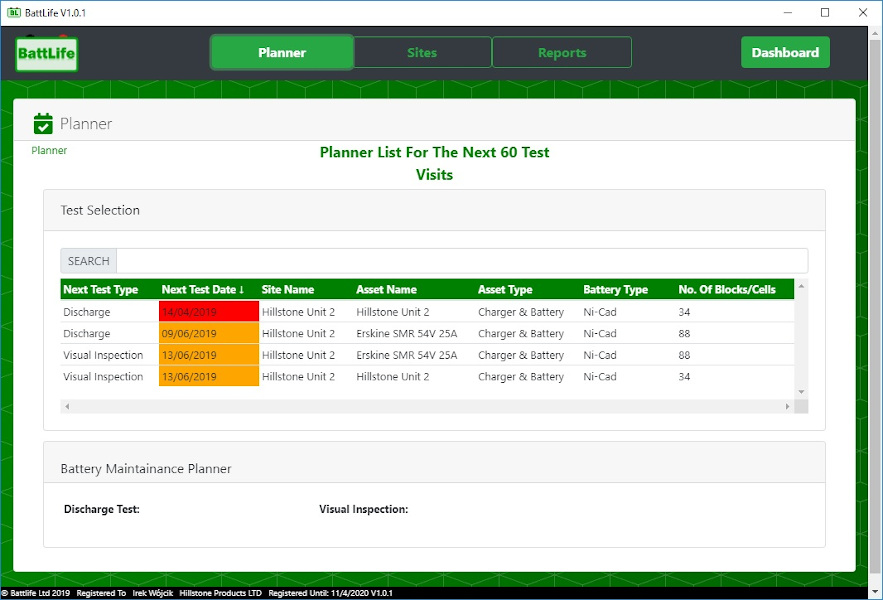

BattLife - Planner
Planner
Planner Details

Available reports include:

  • Visual Inspections

  • Impedance measurement

  • Conductance measurement

  • Autonomy discharge testing

  • Full battery discharge testing

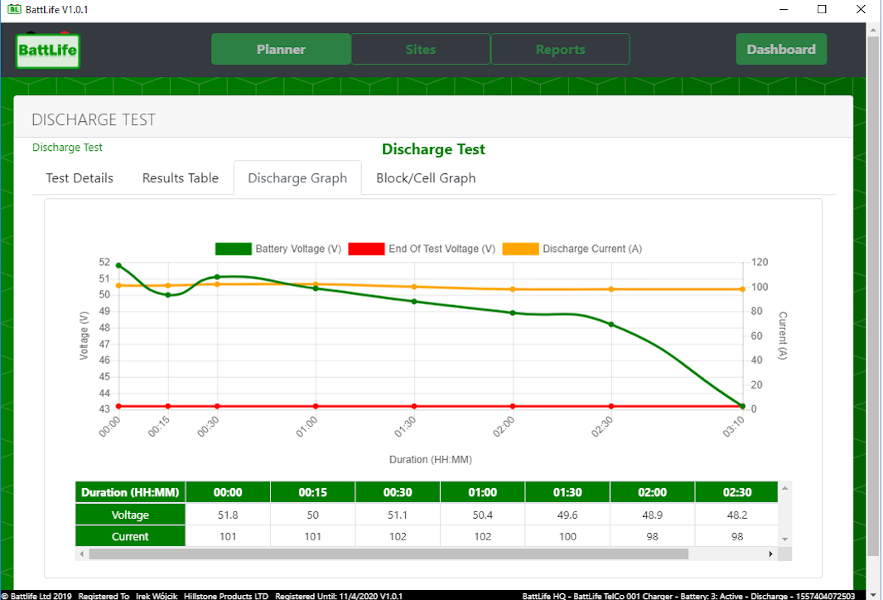

BattLife - Reporter
Results
Reporter Details

With Reporter you can:

  • Instantly report site visits

  • Import historical data

  • Analyse battery performance

  • Predict battery failure

  • Export all your test reports to PDF
